Bani Suef Development

Overview

A 47-feddan master-planned development on the Adly Mansour Axis in Bani Suef, east of the Nile, fronting the Eastern Desert Road. The site is planned as a complete services district for the surrounding residential area, adjacent to the governorate housing area of 104 residential buildings and to social housing zone 1.

The plan comprises two commercial zones, a sports club, a school, a conference hall, a mosque and events hall, a fresh produce market, an automotive service centre, a fuel station, a drive-thru restaurant zone, and a three-star hotel. Individual components are available to operators, so a retailer, an F&B brand, a school operator or a fuel company can each take the element that suits them within a planned and serviced scheme.

These are initial plans (ref EGY-02409, Rev-00) and remain subject to change as the project moves toward a confirmed phasing and delivery schedule.

Site Metrics

Gross land area 198,447 m² · net land area 160,038 m² · total building footprint 61,811 m² · total built-up area 108,744 m² · overall building coverage 30.9%. Roads and parking outside the plots: 72,451 m². Internal streets: 38,960 m², a road loading of 24.3%.

Planned Components

• Commercial & Administrative Mall (Zone 1)

  33,231 m² built-up · 35.8% coverage

  30,934 m² gross plot / 24,947 m² net · 11,077 m² footprint · 3 floors.

• Strip Retail (Zone 2)

  25,758 m² built-up · 31.2% coverage

  41,277 m² gross plot / 33,288 m² net · 12,879 m² footprint · 2 floors.

• Sports Club

  41,084 m² built-up · 30.5% coverage

  67,153 m² gross plot / 54,156 m² net · 20,542 m² footprint · 2 floors. The largest single component.

• School

  12,800 m² built-up · 26.6% coverage

  12,015 m² gross plot / 9,690 m² net · 3,200 m² footprint · 4 floors.

• Conference Hall

  4,494 m² built-up · 41.1% coverage

  10,915 m² gross plot / 8,803 m² net · 4,494 m² footprint · 1 floor.

• Fresh Fruit & Vegetable Market

  3,568 m² built-up · 36.5% coverage

  9,750 m² gross plot / 7,863 m² net · 3,568 m² footprint · 1 floor.

• Fuel & Gas Station

  968 m² built-up · 11.1% coverage

  8,718 m² gross plot / 7,031 m² net · 968 m² footprint · 1 floor.

• Mosque & Events Hall

  4,580 m² built-up · 27.6% coverage

  8,295 m² gross plot / 6,690 m² net · 2,290 m² footprint · 2 floors.

• Car Maintenance Centre

  7,299 m² built-up · 37.8% coverage

  7,978 m² gross plot / 6,434 m² net · 2,433 m² footprint · 3 floors.

• Drive-Thru Restaurant Zone

  720 m² built-up · 25.5% coverage

  1,408 m² gross plot / 1,136 m² net · 360 m² footprint · 2 floors.

• Three-Star Hotel

  Areas to be confirmed

  Also programmed on the masterplan.

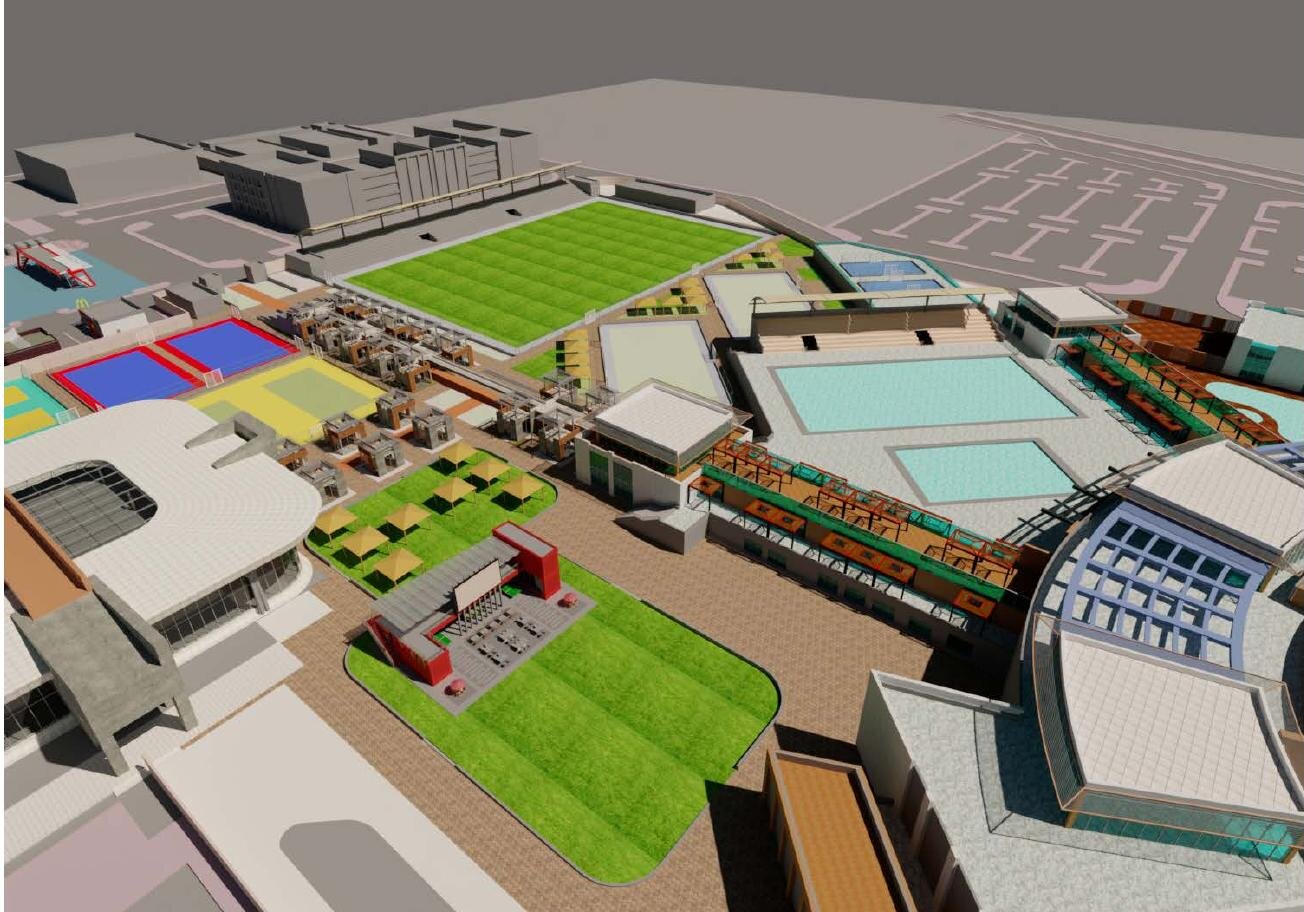

Sports Club Facilities (As Planned)

Football pitch with a surrounding running track · two volleyball courts and multipurpose courts · swimming pool and a separate ladies' pool · gym and covered sports hall · service building and clubhouse · dedicated parking on all sides.
